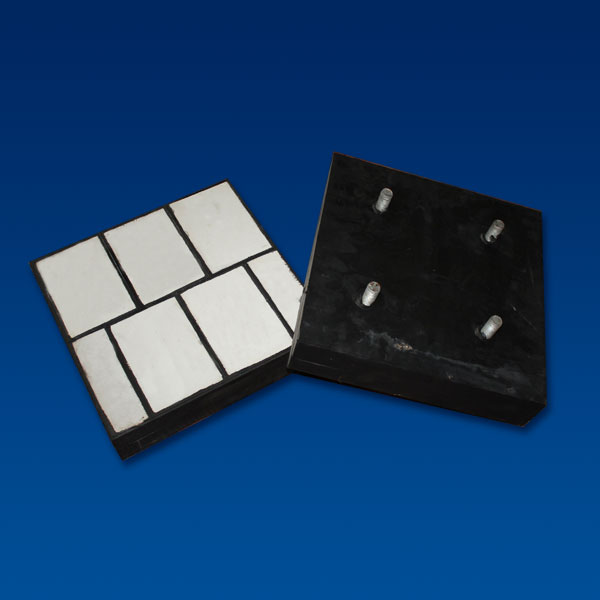

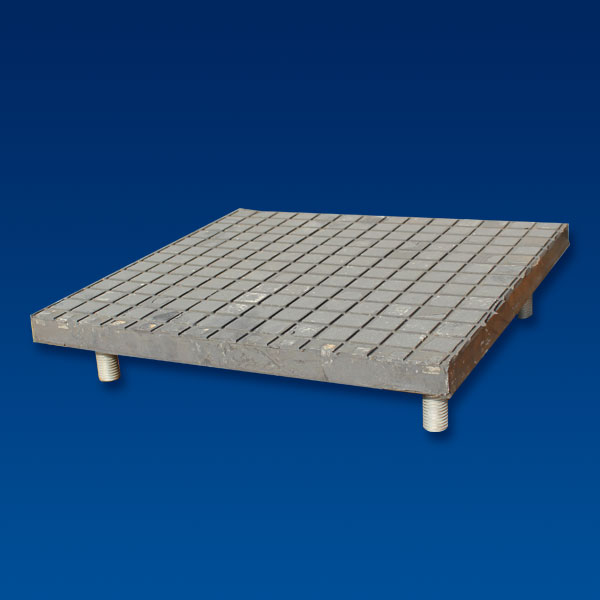

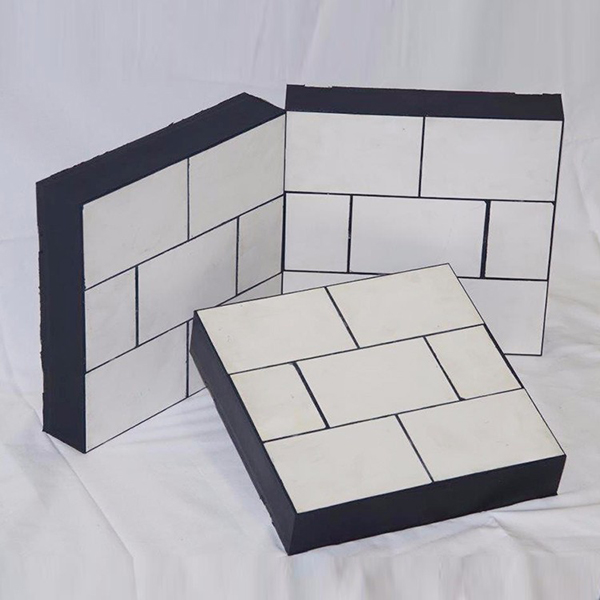

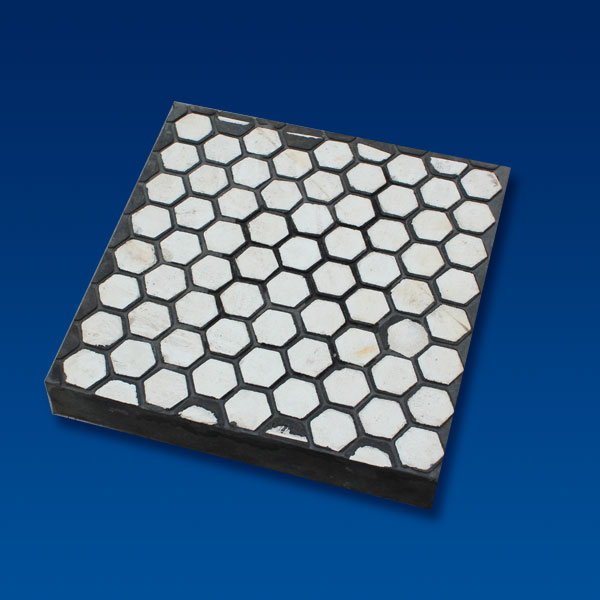

Ceramic rubber wear plate is designed for the application of super high impact and high abrasion resistance. It combine the advantages of high alumina ceramic and natural rubber. The ceramic rubber wear plate is widely used in the equipment of mining, power plant, steel plant etc.
1.Introduction:Ceramic rubber wear plate is a composite wear plate of high abrasion resistant alumina ceramic and high impact resistant rubber. Applying the cutting edge technology, the alumina ceramic tile, cylinder or cube are vulcanized into rubber, so as to form a unified wear plate. Thanks to the excellent experience, EverWin ceramic rubber wear plate is using the global best quality alumina ceramic, good quality rubber and best quality bonding agent. The ceramic rubber wear plate is extremely suitable for wear protection in the chute, feeder, bunker, pipe etc.2.Technical specificationItem | Data |
Rubber | Tensile Strength | >16MPa |
Break Extension/Elongation | >500% |
Shore Hardness | 60±5(adjustable) |
Break permanent deformation | 30% |
Main composition | Natural Rubber+SBR |
Peel strength between rubber and ceramic | 8 MPa/cm |
Peel strength between rubber and steel | 10 Mpa/cm |
Working Temperature | -20~150 ℃ |
Wear Plate Size | 200×200、250×250、400×400、500×500、600×600 |
Ceramic | Ceramic tiles are available from 10x 10 mm to 100 x 150 mm; thickness of ceramic tile can be from 1.5 mm to 50 mm. |
Steel | alloy steel plate with thickness ranging from 3 mm to 10 mm |
Rubber | Depends upon the impact stress expected. |
Remark | metal+rubber+ceramic / rubber+ceramic plain surface or spherical surface. The steel bolt also available upon requests |
