Zirconia Toughened Alumina Ceramic(ZTA) is a technical ceramic with high fracture toughness, it is combination of alumina oxide and 10-30% zirconium oxide. EverWin supply ZTA with super impact resistance, wear resistance, corrosion resistance and chemical stability It is extremely suitable for the impact resistance.1.Introduction:ZTA are developed rapidly in recent years. It has high density and hardness, especially its mechanical properties such as bending strength and fracture toughness are higher than other non-metallic materials.In the mining industry, the handle of bulk material consume a huge amount of lining, the traditional lining is alumina ceramic or metal, however, due to the very high impact and abrasion, the lifetime of the lining is very short and the production line has to shutdown. Thanks to the good impact resistance and abrasion resistance , the ZTA can largely improve the lifetime and reduce the shutdown period of the mining, and the production cost will be much lower. Further more, the ZTA is also widely used in high temperature and wear-resistant structural parts such as oil pump liner, cylinder liner, nozzle and so on.2. Performance Index：
Products |
Zirconia Toughed Alumina |
ZTA-400 |
ZTA-430 |
Zirconia Content（%） |
≥15% |
≥20% |
Alumina Content(%) |
≤85% |
≤80% |
Viker Hardness (Hv50) |
≥1415 |
≥1450 |
Bending Strength (Mpa) |
≥480 |
≥500 |
Fracture Toughness(Mpa 0.5 ) |
≥6.0 |
≥7.0 |
Bulk Density （g/cm3） |
≥4.0 |
≥4.2 |
3.Size available:

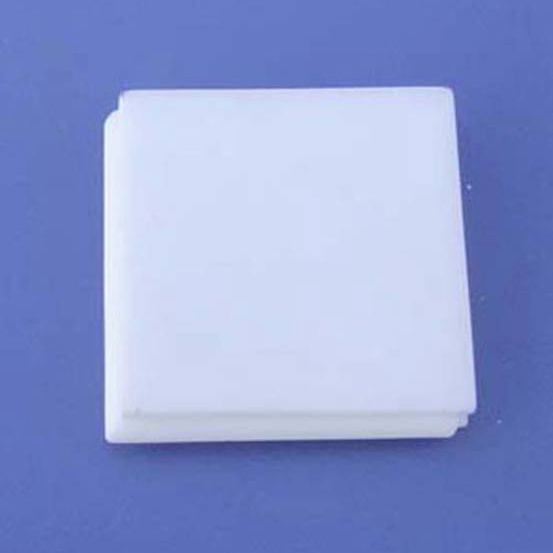

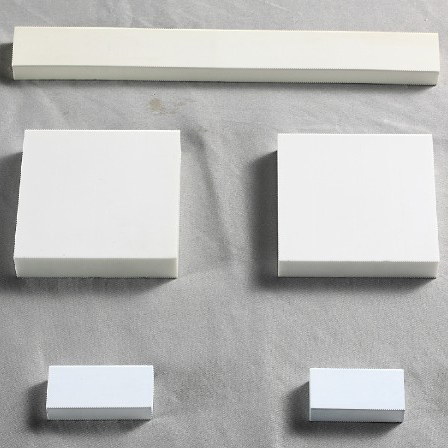

(1)weldable tile, Mosaic Tile, hex tile& Plain Tile are available, the size is from 10x10 up to 200x200, thickness is up to 50mm.
(2)cylinder,tube are also available, we normally produce as per drawing.
(3)We can supply all kinds of ZTA parts such as ZTA plunger,ZTA mud pump on customers’ request.
4.Packaging .
In carton box ,packed in fumigated wooden pallet with net weight 20-25MT/20'FCL
5.Key benefits :
(1)High hardness and better wear resistance.
(2)Excellent impact resistance.
(3)Super fracture toughness.
(4)Super corrosion resistance.
(5) Longer life.
